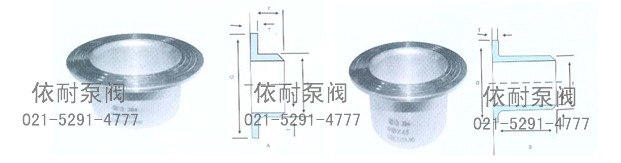

翻邊短接
| NominalPipe Size | Outside diameter OD | Lenth F | Dia of Lap-G | Radius of Fillet | Approx Weight kg/pcs | ||||||||
| DN | INCH | Mss | ANSI | Nominal&Manximun | A Max | B Max | Sch5s | Sch10s | Sch40s | ||||
| Mss ANSI | Mss ANSI | Mss ANSI | |||||||||||
| 15 | 1/2 | 21.3 | 50.8 | 76.2 | 35.1 | 3 | 0.75 | 0.049 | 0.067 | 0.062 | 0.084 | 0.079 | 0.106 |
| 20 | 3/4 | 26.7 | 50.8 | 76.2 | 42.9 | 3 | 0.75 | 0.64 | 0.087 | 0.081 | 0.109 | 0.101 | 0.144 |
| 25 | 1 | 33.4 | 50.8 | 101.6 | 50.8 | 3 | 0.75 | 0.82 | 0.144 | 0.134 | 0.233 | 0.160 | 0.279 |
| 32 | 1.1/4 | 42.4 | 50.8 | 101.6 | 63.5 | 5 | 0.75 | 0.109 | 0.188 | 0.178 | 0.307 | 0.225 | 0.386 |
| 40 | 1.1/2 | 48.3 | 50.8 | 101.6 | 73.2 | 6 | 0.75 | 0.129 | 0.219 | 0.213 | 0.358 | 0.279 | 0.467 |
| 50 | 2 | 60.3 | 63.5 | 152.4 | 91.9 | 8 | 0.75 | 0.204 | 0.406 | 0.338 | 0.667 | 0.471 | 0.924 |
| 65 | 2.1/2 | 73 | 63.5 | 152.4 | 104.6 | 8 | 0.75 | 0.313 | 0.626 | 0.448 | 0.893 | 0.740 | 1.465 |
| 80 | 3 | 88.9 | 63.5 | 152.4 | 127 | 10 | 0.75 | 0.400 | 0.781 | 0.574 | 1.117 | 1.01 | 1.954 |
| 90 | 3.1/2 | 101.6 | 76.2 | 152.4 | 139.7 | 10 | 0.75 | 0.522 | 0.896 | 0.650 | 1.283 | 1.38 | 2.35 |
| 100 | 3.1/2 | 114.3 | 76.2 | 152.4 | 157.2 | 11 | 0.75 | 0.606 | 1.024 | 0.870 | 1.474 | 1.68 | 2.822 |
| 125 | 5 | 141.3 | 76.2 | 203.2 | 185.7 | 11 | 1.5 | 0.985 | 2.153 | 2.21 | 2.635 | 2.08 | 4.957 |
| 150 | 6 | 168.3 | 88.9 | 203.2 | 215.9 | 13 | 1.5 | 1.34 | 2.591 | 1.64 | 3.174 | 3.37 | 6.482 |
| 200 | 8 | 219.1 | 101.6 | 203.2 | 269.7 | 13 | 1.5 | 1.96 | 3.409 | 2.65 | 4.607 | 5.67 | 9.819 |
| 250 | 10 | 273.1 | 127 | 254 | 323.9 | 13 | 1.5 | 3.57 | 6.389 | 4.38 | 7.843 | 9.55 | 17.023 |
| 300 | 12 | 323.9 | 152.4 | 254 | 381 | 13 | 1.5 | 5.85 | 8.922 | 6.74 | 10.275 | 13.8 | 21.075 |
| 350 | 14 | 355.6 | 152.4 | 304.8 | 412.8 | 13 | 1.5 | 6.55 | 11.571 | 7.49 | 13.912 | 16.88 | |
| 400 | 16 | 406.4 | 152.4 | 304.8 | 469.9 | 13 | 1.5 | 7.778 | 14.216 | 8.797 | 16.078 | ||
| 450 | 18 | 457.2 | 152.4 | 304.8 | 533.4 | 13 | 1.5 | 9.009 | 16.216 | 10.252 | 18.453 | ||
| 500 | 20 | 508 | 152.4 | 304.8 | 584.2 | 13 | 1.5 | 11.102 | 19.984 | 13.202 | 23.764 | ||
| 550 | 22 | 559 | 152.4 | 304.8 | 641.4 | 13 | 1.5 | 12.763 | 22.81 | 14.779 | 26.413 | ||
| 600 | 24 | 610 | 152.4 | 304.8 | 692.2 | 13 | 1.5 | 16.132 | 28.839 | 18.476 | 33.028 | ||
訂購注意事項：
翻邊短接產(chǎn)品電子樣本所涵蓋的參數(shù)表、性能表、尺寸表、圖片、文字描述等信息，僅為上海依耐翻邊短接說明書的一部分，供選型參考之用，詳細產(chǎn)品說明書、以及CAD圖紙、安裝圖、尺寸圖等請來電索取。由于編輯水平有限，錯誤和不妥之處在所難免，真誠希望您批評指正。
