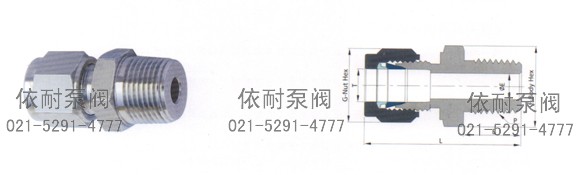

MC卡套式接頭
| T-Tube O.D | PT-NPT Pipe Size (in) | Basic Ordering Number | E Minimum Opening | L | B | G | F |
| 6 6 6 6 | 1/8 1/4 3/8 1/2 | -MC-06-01 -MC-06-02 -MC-06-03 -MC-06-04 | 4.5 4.5 4.5 4.5 | 35 37 38 41 | 10 13 14 17 | 14 14 14 14 | 14 14 14 14 |
| 8 8 8 8 | 1/8 1/4 3/8 1/2 | -MC-08-01 -MC-08-02 -MC-08-03 -MC-08-04 | 4.5 6 6 6 | 37 39 40 43 | 10 13 14 17 | 17 17 17 17 | 14 14 14 14 |
| 10 10 10 10 10 | 1/8 1/4 3/8 1/2 3/4 | -MC-10-01 -MC-10-02 -MC-10-03 -MC-10-04 -MC-10-06 | 4.5 6 7.5 7.5 7.5 | 37 39 40 43 45 | 10 13 14 17 19 | 19 19 19 19 19 | 17 17 19 22 24 |
| 12 12 12 12 12 | 1/8 1/4 3/8 1/2 3/4 | -MC-12-01 -MC-12-02 -MC-12-03 -MC-12-04 -MC-12-06 | 4.5 6 7.5 9.5 9.5 | 42 45 46 49 51 | 10 13 14 17 19 | 22 22 22 22 22 | 19 19 19 22 24 |
| 14 14 14 14 14 | 1/8 1/4 3/8 1/2 3/4 | -MC-14-01 -MC-14-02 -MC-14-03 -MC-14-04 -MC-14-06 | 4.5 6 9.5 11 11 | 43 46 47 50 52 | 10 13 14 17 19 | 24 24 24 24 24 | 24 24 24 24 24 |
| 16 16 16 16 | 1/4 3/8 1/2 3/4 | -MC-16-02 -MC-16-03 -MC-16-04 -MC-16-06 | 6 7.5 11 13 | 45 46 49 51 | 13 14 17 19 | 27 27 27 27 | 24 24 24 27 |
| 18 18 18 | 3/8 1/2 3/4 | -MC-18-03 -MC-18-04 -MC-18-06 | 7.5 11 14 | 46 50 52 | 14 17 19 | 30 30 30 | 27 27 27 |
| 20 20 20 | 1/2 3/4 1 | -MC-20-04 -MC-20-06 -MC-20-08 | 11 14 15 | 52 54 57 | 17 19 22 | 32 32 32 | 30 30 34 |
| 22 22 22 | 1/2 3/4 1 | -MC-22-04 -MC-22-06 -MC-22-08 | 11 16 18 | 52 54 57 | 17 19 22 | 32 32 32 | 30 30 37 |
| T-Tube O.D | PT-NPT Pipe Size (in) | Basic Ordering Number | E Minimum Opening | L | B | G | F |
| 1/4 1/4 1/4 1/4 | 1/8 1/4 3/8 1/2 | -MC-2-01 -MC-2-02 -MC-2-03 -MC-2-04 | 4.5 4.5 4.5 4.5 | 35 37 38 41 | 10 13 14 17 | 14 14 14 14 | 14 14 14 14 |
| 3/8 3/8 3/8 3/8 3/8 | 1/8 1/4 3/8 1/2 3/4 | -MC-3-01 -MC-3-02 -MC-3-03 -MC-3-04 -MC-3-06 | 4.5 6 7.5 7.5 | 37 39 40 43 45 | 10 13 14 17 19 | 19 19 19 19 19 | 17 17 19 22 24 |
| 1/2 1/2 1/2 1/2 1/2 | 1/8 1/4 3/8 1/2 3/4 | -MC-4-01 -MC-4-02 -MC-4-03 -MC-4-04 -MC-4-06 | 4.5 6 7.5 9.5 9.5 | 42 45 46 49 51 | 10 13 14 17 19 | 22 22 22 22 22 | 19 19 19 22 24 |
訂購注意事項：
MC卡套式接頭產品電子樣本所涵蓋的參數(shù)表、性能表、尺寸表、圖片、文字描述等信息，僅為上海依耐MC卡套式接頭說明書的一部分，供選型參考之用，詳細產品說明書、以及CAD圖紙、安裝圖、尺寸圖等請來電索取。由于編輯水平有限，錯誤和不妥之處在所難免，真誠希望您批評指正。
