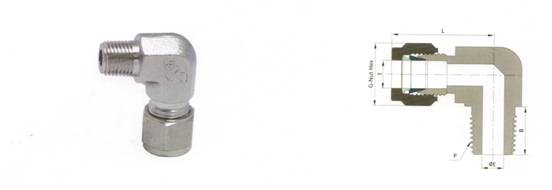

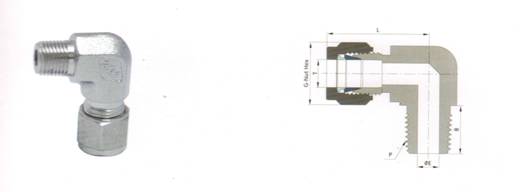

ME卡套式彎頭
| T-Tube O.D | PT-NPT Pipe Size (in) | Basic Ordering Number | E Minimum Opening | L | G | B |
| 6 6 6 6 | 1/8 1/4 3/8 1/2 | -ME-06-01 -ME-06-02 -ME-06-03 -ME-06-04 | 4.5 4.5 4.5 4.5 | 31 31 35 37 | 14 14 14 14 | 10 13 14 17 |
| 8 8 8 8 | 1/8 1/4 3/8 1/2 | -ME-08-01 -ME-08-02 -ME-08-03 -ME-08-04 | 4.5 6 6 6 | 32 32 37 38 | 17 17 17 17 | 10 13 14 17 |
| 10 10 10 10 | 1/8 1/4 3/8 1/2 | -ME-10-01 -ME-10-02 -ME-10-03 -ME-10-04 | 4.5 6 7.5 7.5 | 37 37 37 38 | 19 19 19 19 | 10 13 14 17 |
| 12 12 12 12 12 | 1/8 1/4 3/8 1/2 3/4 | -ME-12-01 -ME-12-02 -ME-12-03 -ME-12-04 -ME-12-06 | 7.5 6 9.5 9.5 9.5 | 40 40 40 41 45 | 22 22 22 22 22 | 10 13 14 17 19 |
| 16 16 16 16 | 1/4 3/8 1/2 3/4 | -ME-16-02 -ME-16-03 -ME-16-04 -ME-16-06 | 6 9.5 11 13 | 43 43 43 45 | 24 24 24 24 | 13 14 17 19 |
| 18 18 | 1/2 3/4 | -ME-18-04 -ME-18-06 | 11 14 | 45 45 | 30 30 | 17 19 |
| 20 20 | 1/2 3/4 | -ME-20-04 -ME-20-06 | 11 14 | 50 50 | 32 32 | 17 19 |
| 22 22 | 3/4 1 | -ME-22-06 -ME-22-08 | 14 18 | 50 50 | 32 32 | 17 19 |
| 25 25 | 3/4 1 | -ME-25-06 -ME-25-08 | 14 20 | 55 55 | 40 40 | 17 19 |
| T-Tube O.D | PT-NPT Pipe Size (in) | Basic Ordering Number | E Minimum Opening | L | G | B |
| 1/4 1/4 1/4 1/4 | 1/8 1/4 3/8 1/2 | -ME-2-01 -ME-2-02 -ME-2-03 -ME-2-04 | 4.5 4.5 4.5 4.5 | 31 31 35 37 | 14 14 14 14 | 10 13 14 17 |
| 3/8 3/8 3/8 3/8 | 1/8 1/4 3/8 1/2 | -ME-3-01 -ME-3-02 -ME-3-03 -ME-3-04 | 4.5 6 7.5 7.5 | 37 37 37 38 | 19 19 19 19 | 10 13 14 17 |
| 1/2 1/2 1/2 1/2 | 1/8 1/4 3/8 1/2 | -ME-4-01 -ME-4-02 -ME-4-03 -ME-4-04 | 7.5 6 9.5 9.5 | 40 40 40 41 | 22 22 22 22 | 10 13 14 17 |
| 1/2 | 3/4 | -ME-4-06 | 9.5 | 45 | 22 | 19 |
訂購注意事項：
ME卡套式彎頭產(chǎn)品電子樣本所涵蓋的參數(shù)表、性能表、尺寸表、圖片、文字描述等信息，僅為上海依耐ME卡套式彎頭說明書的一部分，供選型參考之用，詳細產(chǎn)品說明書、以及CAD圖紙、安裝圖、尺寸圖等請來電索取。由于編輯水平有限，錯誤和不妥之處在所難免，真誠希望您批評指正。
