夾套保溫球閥系列
主要零件材料

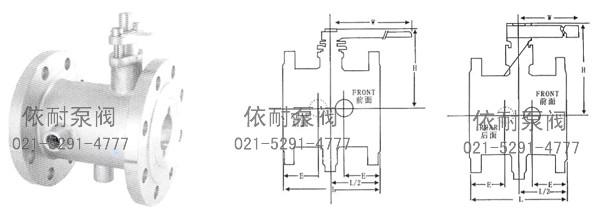

| 材質編號 Code of material |
62.1 | 31.1 | 31.2 | 32.1 | 32.2 |
| 零件名稱 Part name |
|||||
| 閥體 Body | WCB | Cf8 | CF8M | Cf3 | CF3M |
| 球體 Ball | WCB+Cr | Cf8 | CF8M | Cf3 | CF3M |
| 閥桿 Stem | 1Cr13 | 0Cr18Ni9 | 0Cr18Ni12Mo2 | 0CR18Ni9 | 0Cr17Ni12Mo2 |
| 填料 Packing | PTFE | PTFE | PTFE | PTFE | PTFE |
| Nominal Dia |
Construcure dimensions | H | W | ||
| E | Q | P | |||
| 20 | 58.5 | 147 | ZG3/4” | 101 | 160 |
| 25 | 63.5 | 156 | ZG3/4” | 106 | 160 |
| 40 | 62.5 | 181 | ZG3/4” | 125 | 230 |
| 50 | 68 | 218 | ZG3/4” | 135 | 230 |
| 80 | 82 | 275 | ZG3/4” | 193 | 400 |
| 100 | 83 | 300 | ZG3/4” | 265 | 700 |
| 150 | 95 | 403 | ZG1” | 355 | 1100 |
| 200 | 100 | 492 | ZG1” | 410 | 1500 |
密封選擇
| 球 Ball | WCB | CF8 | CF8M | CF3 | CF3M | |||||||||||||||
| 閥座 Seat | Cr+Ni | WELDING STL |
Cr+Ni | WELDING STL |
Cr+Ni | WELDING STL | Cr+Ni | WELDING STL | Cr+Ni | WELDING STL | ||||||||||
| 球表面 Ball surface |
PTFE | METAL +STL |
METAL +STL |
PTFE | METAL +STL |
METAL + STL |
PTFE | METAL +STL |
METAL +STL |
PTFE | METAL +STL |
METAL +STL |
PTFE | METAL +STL |
METAL+STL | |||||
公稱壓力及試驗壓力
| 公稱壓力 Nominalpressure |
殼體試驗 Shelltest | 密封試驗Shelling test | |
| 氣壓Low test | 高壓 Sealingtest (High pressure) | ||
| 1.6 | 2.4 | 0.6 | 1.8 |
| 2.5 | 3.8 | 0.6 | 2.8 |
| 4.0 | 6.0 | 0.6 | 4.4 |
| 6.4 | 9.6 | 0.6 | 7.1 |
| CLASS150 | 3.0 | 0.6 | 2.1 |
| CLASS300 | 7.7 | 0.6 | 5.6 |
| JIS10K | 2.4 | 0.6 | 1.5 |
| JIS20K | 5.8 | 0.6 | 4.0 |
| Test pressure in jacket part | 1.5 | ||
主要連接尺寸和外形尺寸
| 公稱通徑 Nomianl Diameter |
通徑 Size |
L | 日標.美標-JIS 10K[ANSI 150Lb] |
日標.美標-JIS10K[ANSI 150Lb] |
|||||||||||||
| Flange | D | G | T | F | C | N-h | Flange | D | G | T | F | C | N-H | ||||
| 20 | 19 | 117 | 40 | 140 (124) |
85 (73) |
16 (14.3) |
2 (1.6) |
105 (98.5) |
4-19 (4-16) |
40 | 140 (156) |
85 (73) |
18 (20.7) |
2 (1.6) |
105 (114.5) |
4-19 (4-16) |
|
| 25 | 25 | 127 | 50 | 155 (152) |
100 (92) |
16 (15.9) |
2 (1.6) |
120 (120.5) |
4-19 (4-16) |
50 | 155 (165) |
100 (92) |
18 (22.3) |
2 (1.6) |
120 (127) |
8-19 (8-16) |
|
| 40 | 38 |
165 | 65 | 175 (178) |
120 (105) |
18 (17.5) |
2 (1.6) |
140 (139.5) |
4-19 (4-16) |
65 | 175 (190) |
120 (105) |
20 (25.4) |
2 (1.6) |
140 (149) |
8-19 (8-22) |
|
| 50 | 51 | 178 | 80 | 185 (190) |
130 (127) |
18 (19.1) |
2 (1.6) |
150 (152.5) |
8-19 (4-19) |
80 | 200 (210) |
130 (127) |
22 (28.6) |
2 (1.6) |
160 (168) |
8-23 (8-22) |
|
| 80 | 76 | 229 | 150 | 280 (279) |
215 (216) |
22 (25.4) |
2 (1.6) |
240 (241.5) |
8-23 (8-22) |
||||||||
| 100 | 102 | 254 | 200 | 330 (343) |
265 (270) |
22 (28.6) |
2 (1.6) |
290 (298.5) |
12-25 (12-25) |
||||||||
| 150 | 152 | 292 | 250 | 400 (406) |
325 (324) |
24 (30.2) |
2 (1.6) |
355 (362.0) |
12-25 (12-25) |
||||||||
| 200 | 203 | 330 | 350 | 490 (533) |
415 (413) |
26 (35) |
3 (1.6) |
445 (476.0) |
16-25 (12-29) |
||||||||
訂購注意事項：
夾套保溫球閥系列產品電子樣本所涵蓋的參數表、性能表、尺寸表、圖片、文字描述等信息，僅為上海依耐夾套保溫球閥系列說明書的一部分，供選型參考之用，詳細產品說明書、以及CAD圖紙、安裝圖、尺寸圖等請來電索取。由于編輯水平有限，錯誤和不妥之處在所難免，真誠希望您批評指正。
